PLA4708065

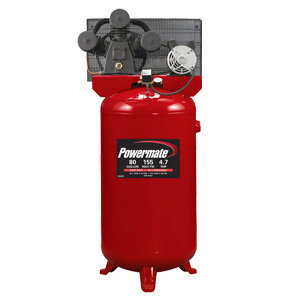

80 gallon Hi-Flo single stage cast iron air compressor provides more air for longer run time


FEATURES
  • High air flow, single stage
      - 14 CFM @ 90 PSI
  • Cast iron, 3 cylinders, oil lubricated pump. Oil level sight glass, easy access oil fill, 12" cast iron flywheel and large intake filter/silencers
  • Heavy duty 240 volt induction motor
  • 155 PSI max pressure for optimum tool performance
  • Wire formed belt guard for more efficient cooling
  • Shipped with synthetic oil for optimum performance and long life
SPECS

Tank

  • Size: 80 Gallons
  • Style: Vertical Stationary
  • ASME Approved: Yes

Compressor Pump

  • Style: Oil Lubed Belt Drive Single Stage
  • Construction: Cast Iron
  • Lubrication: Oil Lubricated

CFM

  • 16.1 CFM's @ 40 PSI
  • 14 CFM's @ 90 PSI

Pressure

  • Operating Pressure: PSI
  • Maximum Pressure: 155 PSI

Power

  • Source: Electric
  • Horsepower: 4.7
  • Engine Manufacturer:
  • Volt/Amp/Phase: /0/

Sizing

  • Dimensions (LxWxH):  31.5 x 34.75 x 77
  • Weight: 354 Pounds
  • Limited Warranty: 2 year limited
  • Certification: CSA,UL

Accessories

  • Included: No
