MPC1682066.MN

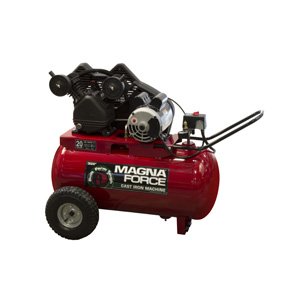

This 20 gallon air compressor is great for all of your projects around the house such as light to heavy duty nailing as well as medium duty automotive tasks with pneumatic air tools and all of your inflation needs.
|
|
|
FEATURES
|
- 20 Gallon cast iron, oil lubricated, belt drive air compressor
- Cast iron, V-twin cylinder, oil lubricated pump with oil level sight glass
- Heavy duty induction motor for maximum performance and efficiency
- Pneumatic tires for maximum portability
- Dual voltage motor is wired for standard 120 volt outlet, and may be converted for 240 volt application
- Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch
|
|
SPECS
Tank
- Size: 20 Gallons
- Style: Horizontal Portable
- ASME Approved: Yes
Compressor Pump
- Style: Oil Lubed Belt Drive Single Stage
- Construction: Aluminum with Cast Iron
- Lubrication: Oil Lubricated
CFM
- 6.2 CFM's @ 40 PSI
- 5.3 CFM's @ 90 PSI
Pressure
- Operating Pressure: 100-135 PSI
- Maximum Pressure: 135 PSI
Power
- Source: Electric
- Horsepower: 1.6
- Engine Manufacturer:
- Volt/Amp/Phase: 120/240/15/1
Sizing
- Dimensions (LxWxH):
34.25 x 23.25 x 35.5
- Weight: 155 Pounds
- Limited Warranty: 2 year limited
- Certification: CSA,UL
Accessories
|
|
FEATURED ACCESSORIES
012-0057CT: 50' X 3/8" Blue 300 PSI PVC Air Hose
|
WARNING: CONTAINS LEAD. May be harmful if eaten or chewed. May generate dust containing lead. Wash hands after use. Keep out of reach of children.
 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
|
|
