MP0502013

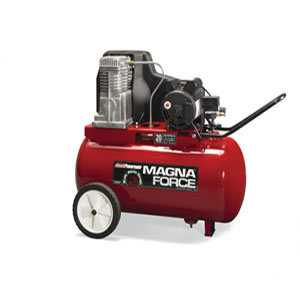

This oil lubricated belt drive unit is an evolution of over 40 years of proven technology. Designed with the professional in mind, this compressor works great for anyone from the do-it-yourselfer to the professional user.


FEATURES
  • Oil lubricated belt drive technology provides quiet operation

      - Less noise than direct drive air compressors
  • Long lasting twin cylinder pump combines cast iron cylinders with aluminum cooling fins to reduce heat, maximize CFM, and extend pump life
  • Heavy duty induction motor for maximum performance and reliability
  • 20 gallon ASME portable tank equipped with pre-attached wheels and handle
  • Dual voltage motor is wired for standard 120 volt outlet, and may also be converted for 240 volt applications
  • Includes a quick-set regulator, tank and working pressure gauges, and on/off switch
SPECS

Tank

  • Size: 20 Gallons
  • Style: Horizontal Portable
  • ASME Approved: Yes

Compressor Pump

  • Style: Oil Lubed Belt Drive Single Stage
  • Construction: Aluminum with Cast Iron
  • Lubrication: Oil Lubricated

CFM

  • 7.1 CFM's @ 40 PSI
  • 5.7 CFM's @ 90 PSI

Pressure

  • Operating Pressure: 100-130 PSI
  • Maximum Pressure: 130 PSI

Power

  • Source: Electric
  • Horsepower: 1.9
  • Engine Manufacturer:
  • Volt/Amp/Phase: 120/240/0/1

Sizing

  • Dimensions (LxWxH):  35 x 21.25 x 32
  • Weight: 151 Pounds
  • Limited Warranty: 2 year limited
  • Certification: CSA,UL

Accessories

  • Included: No
